Case study: Archimedes screw turbine at Buckfast Abbey

Case study: Archimedes screw turbine at Buckfast Abbey
Buckfast abbey archimedes screw turbine

Renewables First – Buckfast Abbey Archimedes screw turbine.

 Buckfast abbey hydro archimedes screw turbine

Archimedes screw turbine at Buckfast Abbey.



Year: 2012

Technology: Archimedes Screw turbine

Output: 84 kW

Role: Design – Install – Commission







Located on the River Dart, the Buckfast Abbey hydro scheme forms part of a major redevelopment of a historic industrial site, part of a number of working mills. The combination of other construction activities on the site and the tight proximity of buildings, meant that this was a difficult installation to undertake.

Buckfast abbey hydro archimedes screw turbine

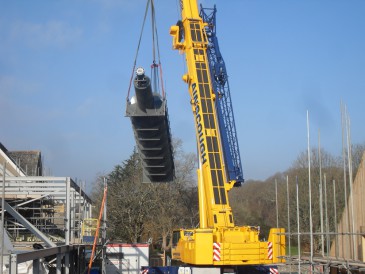

Lifting the Archimedes screw turbine into position.

Renewables First - Buckfast abbey hydro scheme

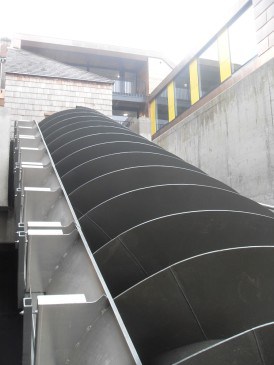

Buckfast Abbey Archimedes screw turbine.















Renewables First - Buckfast Abbey hydro scheme

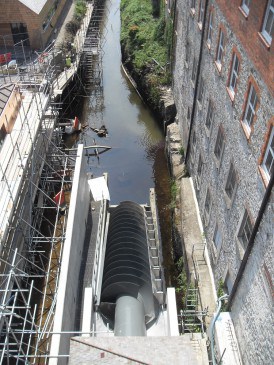

Ariel view of Buckfast Abbey hydro scheme.

The Archimedes Screw used is sandwiched between an old mill on the one side and newly constructed buildings on the other. Some key facts about the screw include:

  • 84 kW maximum output
  • Utilises a 4.2m head differential
  • Flow rate of 2.8 cubic metres (m3) per second
  • 4 bladed, 2.5m diameter turbine
  • Installed at a 26 degree incline



Renewables First - Buckfast Abbey hydro scheme

Buckfast Abbey hydro scheme.

Archimedes Screw turbines are very often supported at the top and the bottom on a concrete slab. Underneath the turbines there is a trough, which acts as a liner. This is filled underneath with concrete (to provide support), which conforms tightly to the Archimedes Screw.

On this site, however, it is basically the same except that the trough is self supporting (with no concrete underneath) and the turbine is only sat on a concrete slab at the top and bottom.

This made the installation much quicker, reducing the need for concreting, which would have been difficult, given the restricted access.







Renewables First - Buckfast Abbey hydro scheme

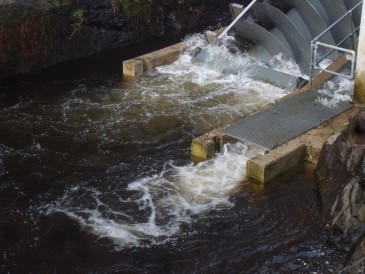

Buckfast Abbey: bottom end of Archimedes screw turbine and Alaskan fishpass.

Renewables First - Buckfast Abbey hydro scheme

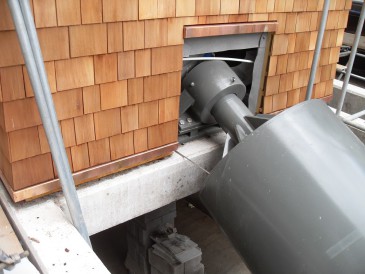

Buckfast Abbey: top end of Archimedes screw turbine entering powerhouse.















Despite the design modifications, the screw performs just the same. There is also a fish pass running down the side of the turbine for both upstream and downstream migrating fish. This is a secondary option for fish because the main fish pass is on the river weir, so this is a fail safe option for any fish that find their way up the tail race.

Renewables First - Buckfast Abbey hydro scheme

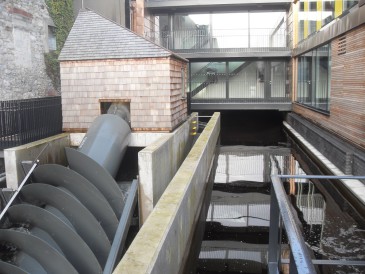

Powerhouse at Buckfast Abbey hydro scheme.

The turbine powerhouse was architect designed to be functional and sensitive to the historic physical context – hence the shingle roof and cladding. The powerhouse had to be shoehorned into a very tight location at the head of the Archimedes Screw.

Renewables First - Buckfast Abbey hydro scheme

Shingle roof on powerhouse.

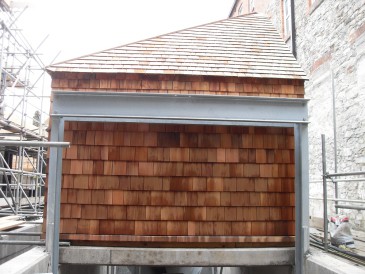

Renewables First - buckfast abbey hydro

Shingle cladding on powerhouse.

More about the fishpass

The Buckfast Abbey hydro scheme is located on the river Dart, with lots of migratory fish. The distance from the outfall of the Archimedes Screw turbine to the river is roughly 250 metres. Previously, some fish would have migrated upstream (via the tail race) from the river to the old turbine, only to find there was no way past – thus the turbine acted a barrier to upstream migration. Although the main fish pass is located on the river weir, it was recognised to be an important aspect of the installation that a dedicated fish pass was incorporated. This was a challenge given the tight physical constraints of the site and high head.  An Alaskan fish pass was chosen to fulfill this role, the specification of which included:

Renewables First - alaskan fish pass

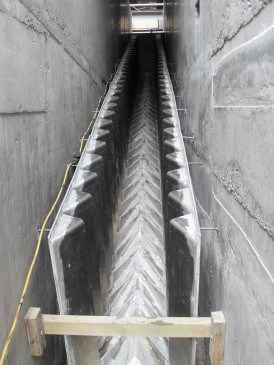

Alaskan “A” fish pass at Buckfast Abbey.

  • 2 flight Alaskan “A” fish pass
  • Resting pool
  • 280 litres per second design flow
  • 21 metre total baffle length
  • 5.08 maximum head differential

The image (left) shows the Alaskan fish pass. The fish pass spans a vertical step of 5 metres from the tail race to the head of the turbine, and sits within a very restricted space, due to close proximity of nearby buildings.

The Alaskan fish pass is designed for upstream migration of salmonids. This solution works well for this scenario because this fish pass isn’t the main fish pass route – the main fish pass route is downstream via the weir.

Renewables First - alaskan fish pass

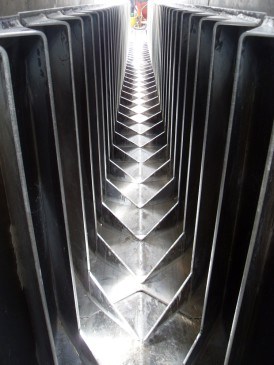

Alaskan fish pass at Buckfast Abbey hydro scheme.

The picture (above) is looking down into the fish pass. The fish will ascend up the middle of the shute. The fish pass is designed to be as efficient as possible at creating white water. The fins down each side create lots of re-circulation of the water, creating an up-current up the middle part of the fish pass enabling easy passage for fish.  The only maintenance requirement is to keep the pass free of debris. This is achieved by the use of a floating trash boom above the pass to prevent debris entering.
