Case study – River Dart Country Park hydro

Case study – River Dart Country Park hydro

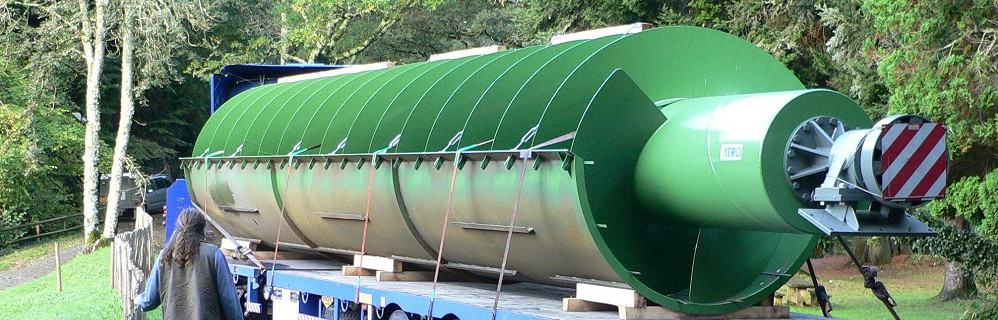

River Dart Country Park hydro scheme Archimedes Screw

Renewables First – River Dart Country Park hydro (Archimedes Screw)

River Dart Country Park hydro scheme

River Dart Country Park hydro: 50kW Archimedes Screw

Site: Ashburton, Devon

Turbine: Archimedes Screw

Power: 50kW

Head: 4.5 metres







The River dart Country Park hydro scheme is located within the Dartmoor National Park. Western Renewable Energy (WRE), now Renewables First, was brought in by the site owner to carry out the feasibility work and design of this hydro scheme. It negotiated the consents to allow the turbine to be installed, pending a large fish testing program.

WRE were first consulted about the feasibility of the hydro scheme in 2005, and later linked up with control firm GP Electronics and local civil engineering company, Castleford Engineering. At the outset, the project was by no means straightforward. Some major issues to be worked around included:

  • The scheme would be the first large grid connected hydro turbine in the UK, and hence no Environment Agency familiarity with the technology.
  • The site is located on a sensitive salmonid river, hence the fish testing program.
  • The site is located within the Dartmoor National Park.
  • Additionally the site was very public and within an attractive area.
River Dart Country Park hydro scheme

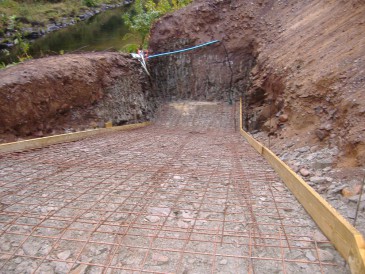

Excavation works for the River Dart Country Park hydro scheme.

River Dart Country Park hydro scheme

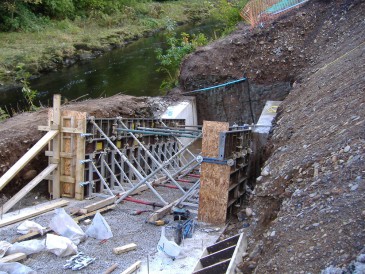

Constructing the concrete foundations.













Once the project commenced, site access was good with easy control of the water in the leat. Excavation works were carried out with 7 tonne machinery from a local firm. All materials excavated were disposed of on site and reused. The concrete structure was poured in sections to reduce shuttering hire costs. This was  delivered via conveyors to minimise handling requirements. The 50 kW Archimedes Screw was then crane lifted into position. Finally, the tailrace excavation was carried out last and the system was commissioned soon after.

Renewables First - River Dart Country Park hydro scheme

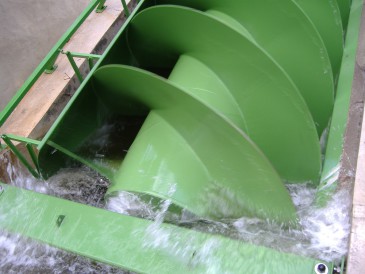

Archimedes Screw in-situ.

Renewables First - River Dart Country Park hydro scheme

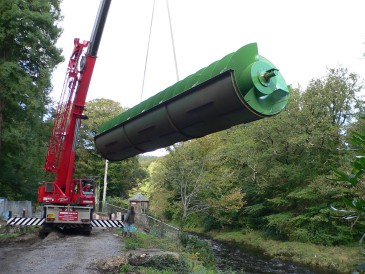

Lifting the Archimedes Screw.















Renewables First - River Dart Country Park hydro scheme

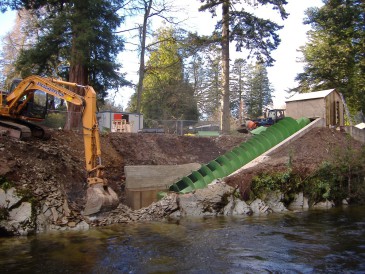

Tailrace excavation.

Renewables First - River Dart Country Park hydro scheme

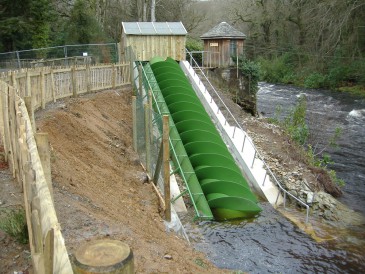

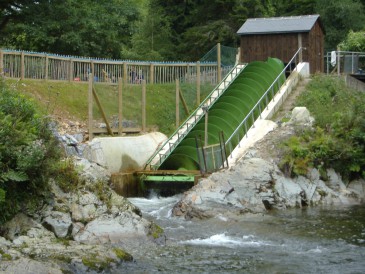

River Dart Country Park Archimedes Screw.
