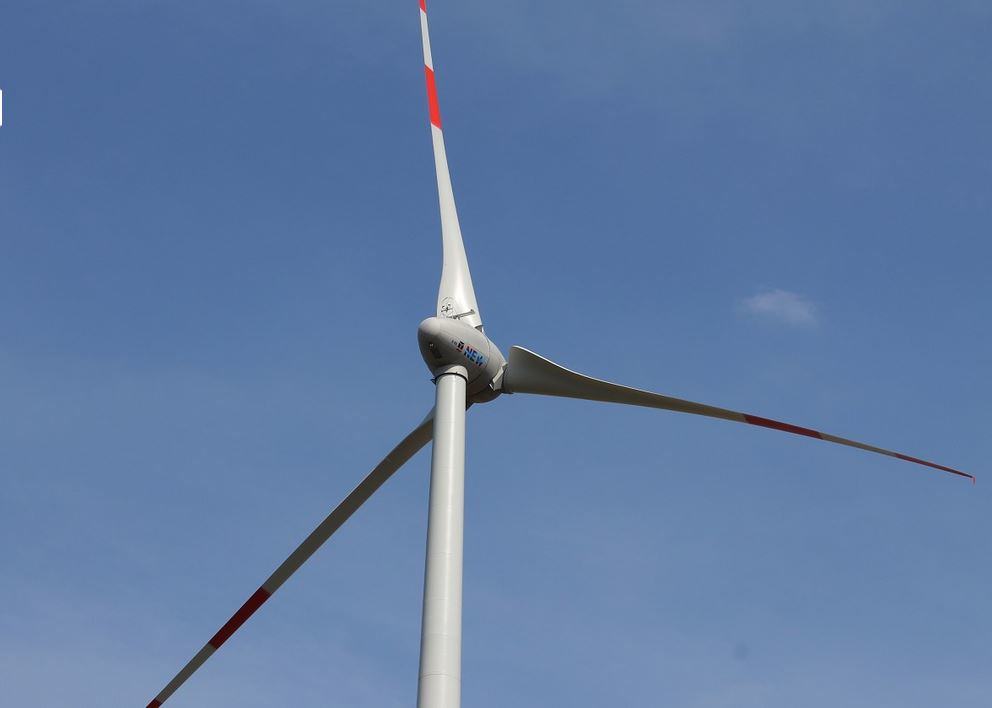

Enercon E82 E5 2350 kW
What is the Enercon E82 E5 2350 kW wind turbine most suitable for?
The Enercon E82 E5 2350 kW Wind Turbine is suitable for :
- Very sites
- Large sites
- On-site generation
- Factories
- Seaports
- Farms
- Government and Institutional Buildings
- Community
- Commercial and industrial sites
Enercon E82 E5 2350 kW Wind Turbine Specification
| Turbine | |
|---|---|
| Configuration | Three blade, horizontal axis, upwind |
| Rated Power | 3,000 kW at 16 m/s |
| Rotor Speed | 6 to 18 rpm |
| IEC 61400-1 Turbine Class | IA |
| Site Average Wind Speed | 10 m/s |
| Survival Wind Speed | 70 m/s |
| Rotor | |
| Rotor Diameter | 82 m |
| Swept Area | 5,281 m² |
| Blade Material | GRP (Epoxy) |
| Power regulation | Pitch controlled variable speed |
| Generator | |
| Generator Type | ENERCON direct drive synchronous ring generator |
| Configuration | 3-Phase, 400V, 50Hz – 60Hz |
| Brake & Safety System | |
| Main Brake System | 3 independent pitch control systems with emergency power supply |
| Secondary System | Rotor brake and Rotor lock (maintenance purposes) |
| Automatic Shutdown triggered by | High wind speed, grid failure, over-speed, all other fault conditions |
| Controls | |
| Control Systems User Interface | ENERCON SCADA |
| Towers | |
| Available Hub Heights | 78 m, 84 m |
| Tower Type | Tubular steel tower |
| Warranty | |
| Period and type | Up to 15 year standard service package |
| Download Brochure Here | |
